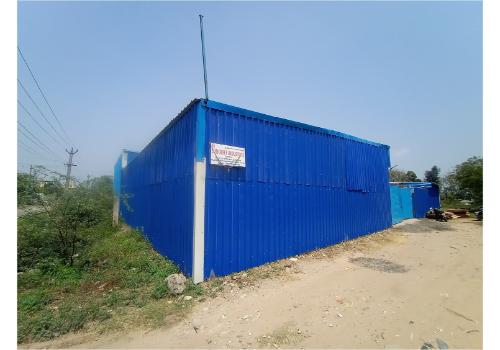

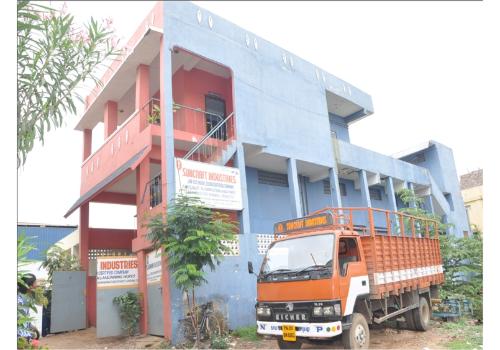

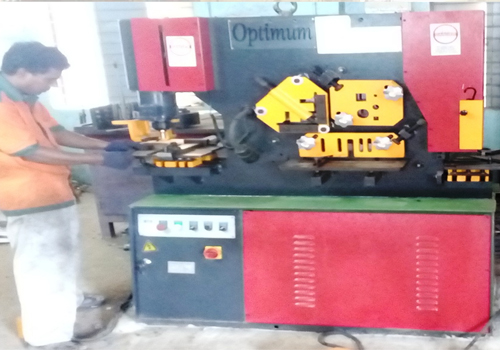

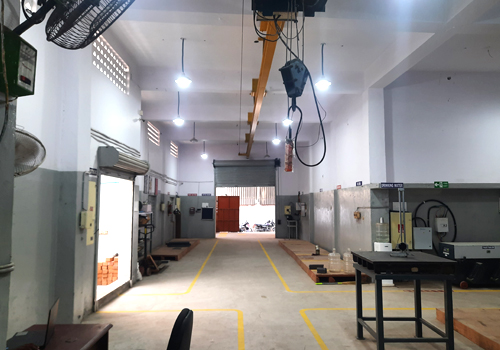

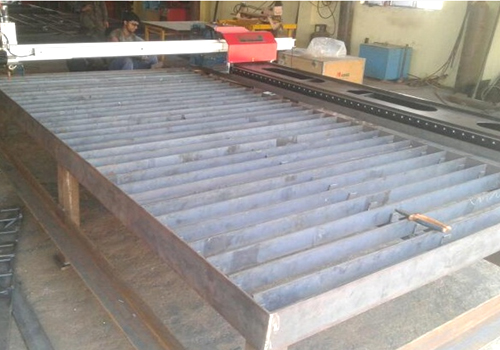

A huge and well equipped In-house Setup of more than 23,000 Sq. Ft. and Trucks Loading Area 13000 Sq.Ft at Ambattur Industrial Estate, Athipet, Chennai. with facilities such as CNC Profile Cutting, Fabrication, Punching, Shearing, Bending, MIG welding, TIG welding, ARC welding, Painting shop equipped with latest equipments and tools have always ensured us to give quality projects with finesse at cost effective budgets and in stipulated deadline. To understand the customer requirement and help them better, We Have an extended relation with all our clients, in terms of planning, strategizing and executing plan for the Business.

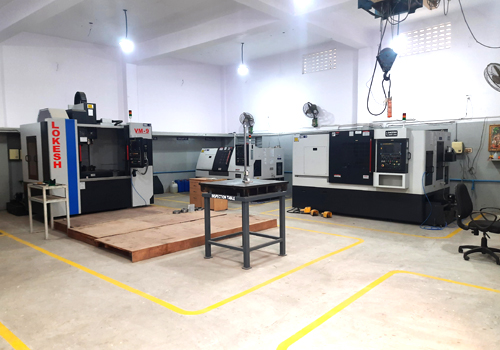

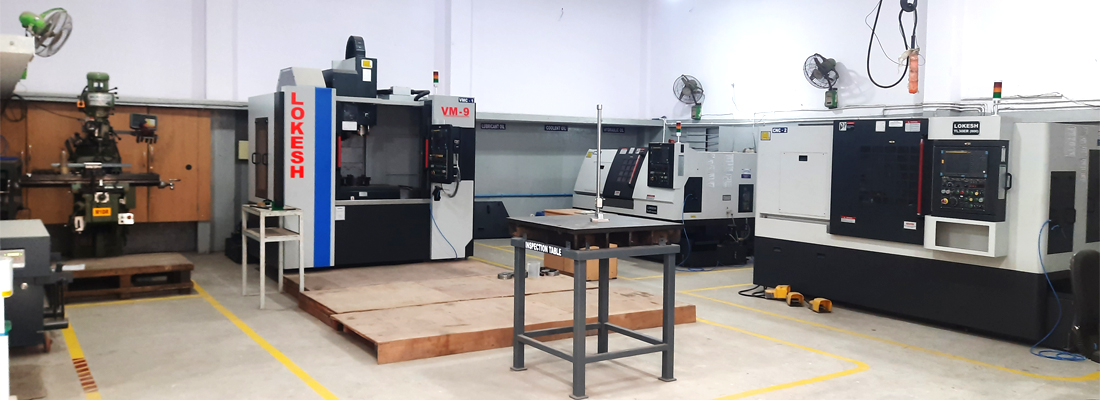

MACHINE NAME : VMC , Model : VM 9
TABLE SIZE:1000 X 950, TRAVEL: X = } 800 mm ,
Y =} 500 mm , Z =} 500 mm
SPINDLE NOSE TO TABLE TOP: MIN - 100 mm
MAX - 600 mm Max Rpm : 8000
MAX CARDON TABLE ,SPINDLE TAPER : 500 Kgs,
NO OF TOOLS :BT 40, RANDOM TYPE : 20
MACHINE NAME : CNC TURNER MODEL : TL 30ER ( 800 )
CHUCK SIZE : 315 Z TRAVEL : 900 mm,
SPINDLE : A28, MOTOR RPM : 11 / 15
MAX RPM : 2000, MAX TURNING LENGTH WITH CHUCK : 800 mm
MAX TURNING DIA : 450 mm, TOTAL SHANCK :
25 X 25/40 DIA, STERM REST : 30 - 120 mm
BAR CAPACITY : 75 mm, TOOL SHOKE : M75,
BASE TRAVEL : 800 mm, QUILL TRAVEL : 1200 mm
MACHINE NAME : CNC TURNER ( MODEL TL 20 )
MAX 500
CHUCK SIZE : 200 DIA , MAX TURNING DIA : 320 mm, TURNING LENGTH : 800 mm
MIN CHUCK : 540 mm, SPINDLE : A26,
POWER : 7.5KW, MAX RPM : 3000
TOTAL SHANCK : 25 X 25/40 DIA, Z TRAVEL : 575 mm,
NO OF TOOLS : 8

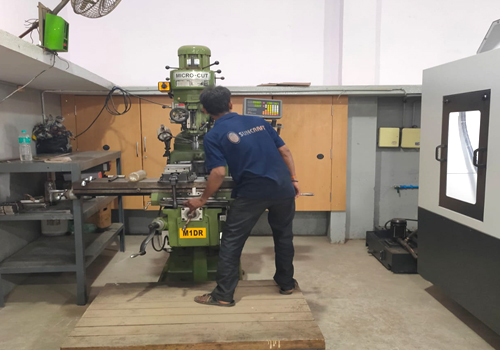

NAME : M1TR MILLING
CAPACITY : MAX 50 DIA

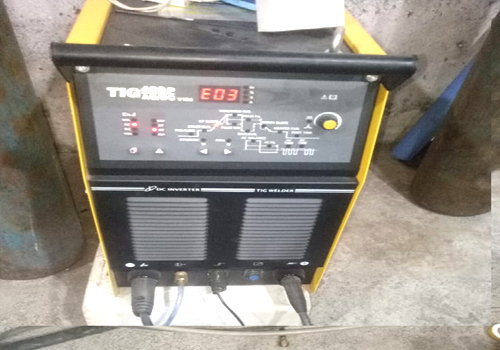

TIG WELDING MACHINE 400P AC / DC
Capacity : Aluminium – 16 mm Thick Max,
SS – 12 mm Thick Max, MS:25 mm Max

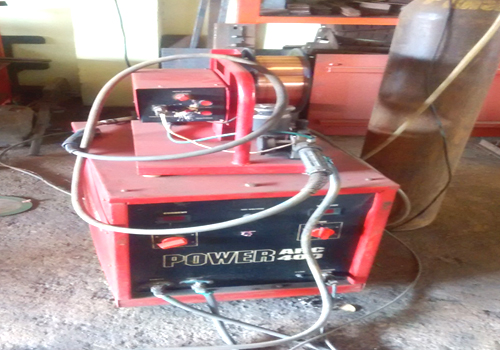

MIG WELDING – 7 NOS
DESIGNING TEAM
